Aanbieding!

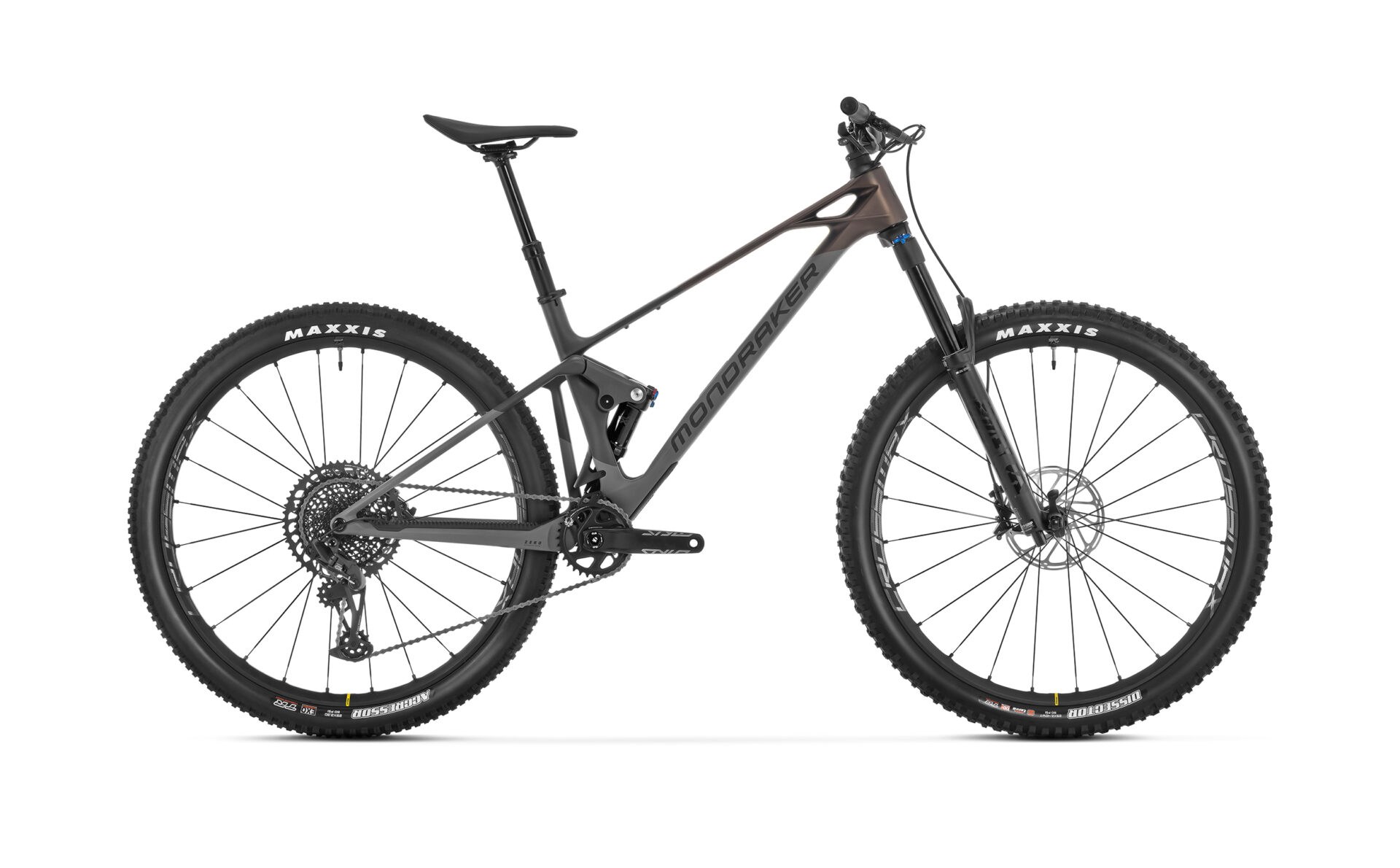

MONDRAKER RAZE Carbon R – 2024

Oorspronkelijke prijs was: € 5.999,00.Huidige prijs is: € 4.999,00.

De RAZE CARBON R is de ideale fiets als je een agressieve trailbike wilt die ook nog eens heel erg goed trapt. De uitstekende klimeigenschappen zorgen ervoor dat je benen de enige beperking zijn bij het klimmen. De effectiviteit ervan bij het klimmen is onbetwistbaar.

Merk: Mondraker

Type: fullsuspension MTB / Trail

Kleur: Grey / Bronze

Maat: L

Deraillieur : Sram GX Eagle

Frame: Carbon

Conditie art.: Nieuw



1 op voorraad

Category:

Specificaties:

  •  Frame

    Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

     Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 500mm

     Rear shock

    Fox Float EVOL Performance, 205×57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

     Shock settings

    Light compression, light rebound, air volume spacer 0.6

     Fork

    Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

     Headset

    Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing

     Stem

    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

     Handlebar

    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

     Grips

    Onoff Desert, 1lock-on, 135mm

     Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm

     Saddle

    Fizik Vento Argo X5

     Front brake

    Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

     Rear brake

    Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

     Brake lever

    Sram G2 R, tool-free reach adjust, lever pivot bushings

     Rims

    Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

  •  Spokes

    Mavic 24 straight-pull double butted spokes

     Front hub

    Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

     Rear hub

    Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub

     Front tire

    Maxxis Dissector 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

     Rear tire

    Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

     Crankset

    Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52

     Rings

    32T, CNC-machined alloy, X-SYNC 2

     Bottom bracket

    Sram DUB BSA, sealed bearings, 73mm

     Chain

    Sram NX Eagle, 12s, Powerlock

     Rear derrailleur

    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

     Shift levers

    Sram Trigger NX Eagle, 12s, X-Actuation 1:1

     Casette

    Sram XG-1275, 10-52T, 12s

     Derailleur hanger

    Sram UDH

     Weight

    13,6 kg
